Polyamide Terminal Block
- Stud Type Terminals

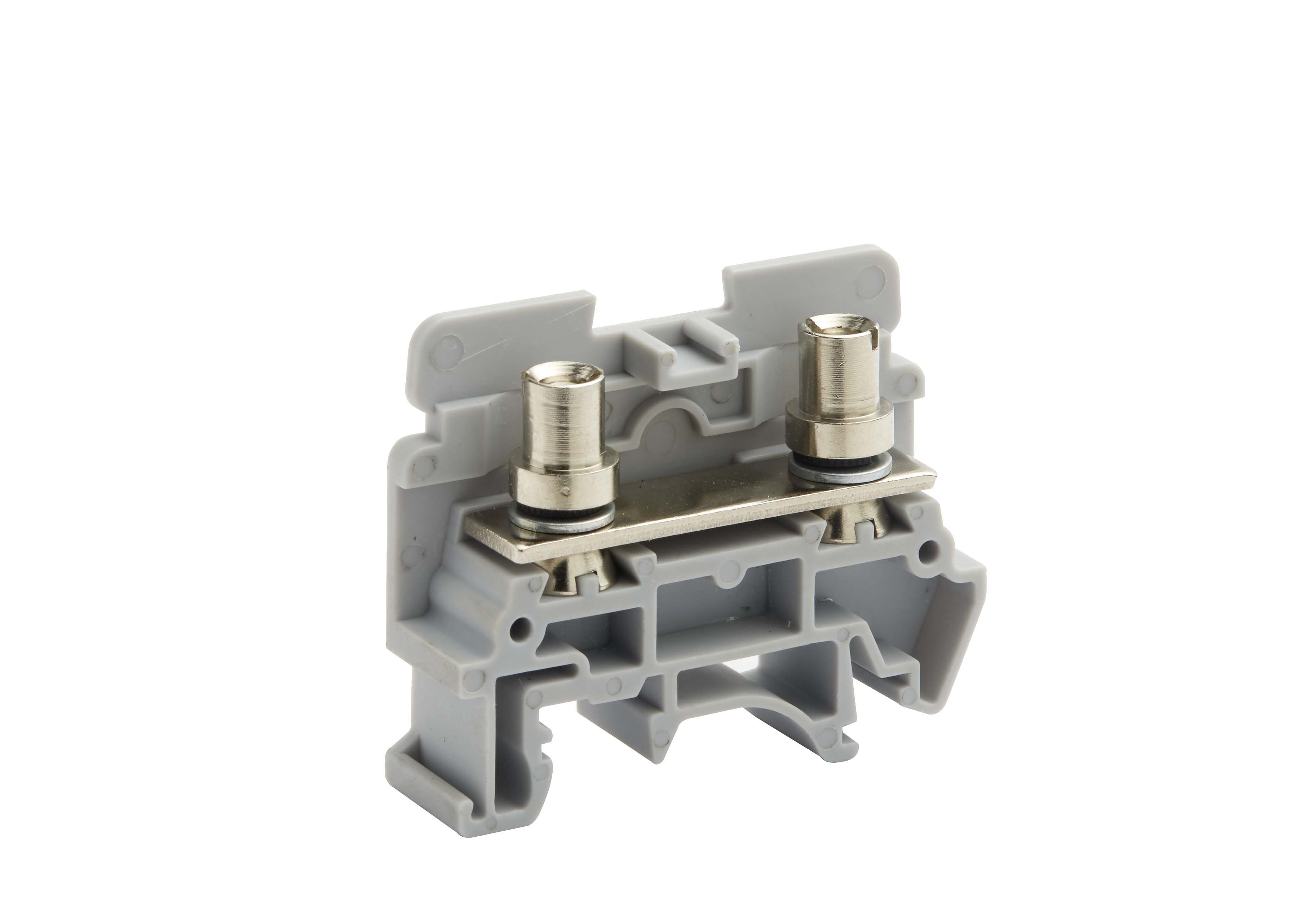

GST B4P
| Terminal Pitch | 13 |
| H×W (mm) | 39.6×49.8 |
| Rated Cross Section (mm²) | 10 mm² |
| Connection (Stranded) | 2.5mm²-10 mm² |
| Possibility (Solid) | 2.5mm²-10 mm² |
| Wire Stripping Length | 12mm |
| Type of Connection | 2 screw flat connection for ring/fork lugs |
| Rating (IEC 60947-7-1) | 800V/57A/10 mm²/1.2N.m |
| Screw Size | M4 |
| Color & CAT No. | |
| Grey | GSTB4P/G |
| Red | |
| Yellow | |
| Blue | |
| Black | |
| End Plate | GEP B4P |
| End Clamp Model No. | GECP1/GECM1/2 |
| Standard Packing | 100PCS |
| Mounting Rail | TS32, TS35 |

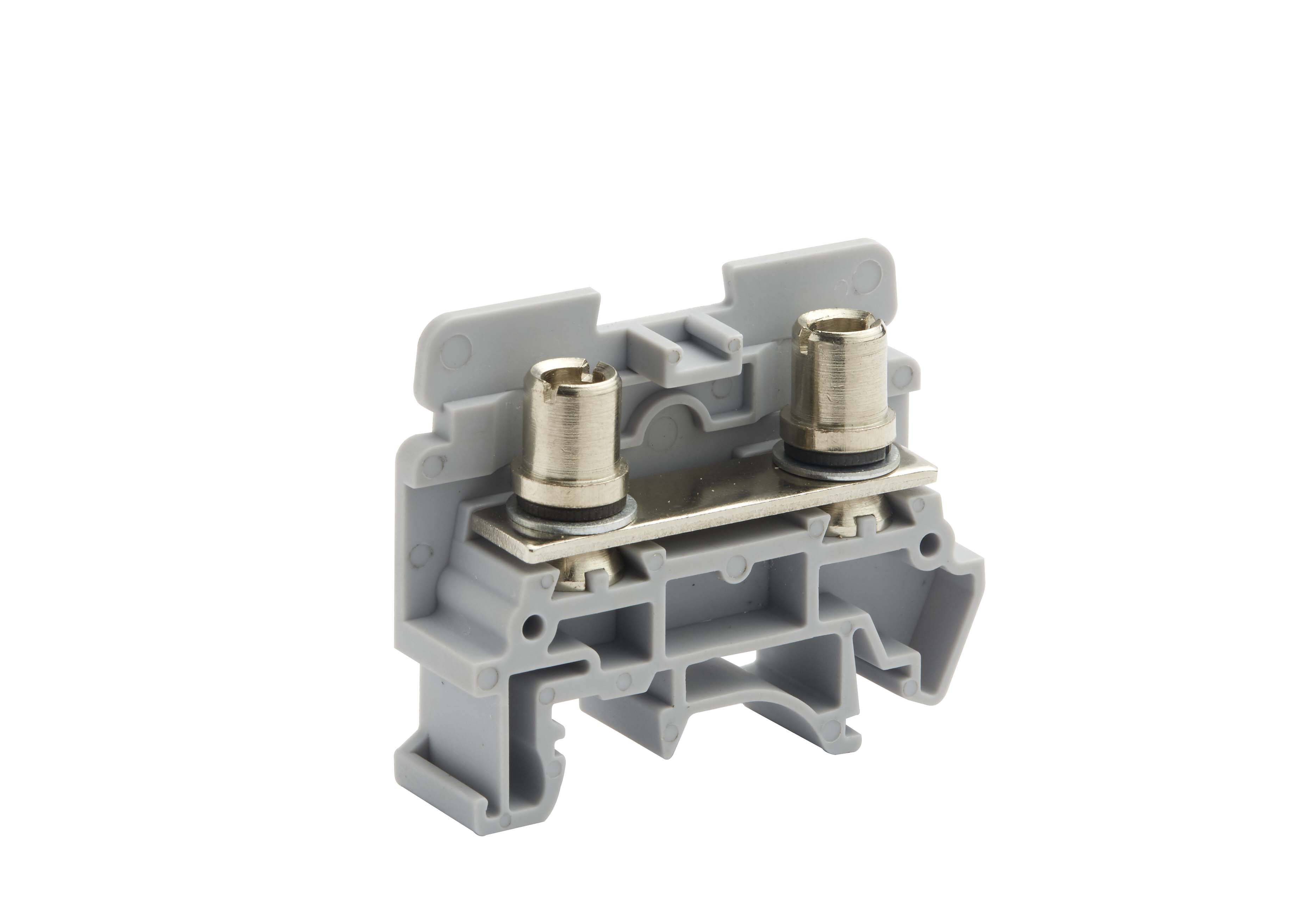

GST B5P
| Terminal Pitch | 13 |
| H×W (mm) | 39.6×49.8 |
| Rated Cross Section (mm²) | 16 mm² |
| Connection (Strannded) | 2.5mm²-16mm² |
| Possibility (Solid) | 2.5mm²-16mm² |
| Wire Strippinng Length | 12mm |
| Type of Connection | 2 screw connection for ring/fork lugs |
| Rating (IEC 60947-7-1) | 800V/76A/16mm²/2 N.m |
| Screw Size | M5 |
| Color & CAT No. |
|
| Grey | GSTB5P/G |
| Khaki | |
| Red | |
| Yellow | |
| Blue | |
| Black | |
| End Plate | GEP-SP |
| End Clamp Model No. | GECP1/GECM1/2 |
| Standard Packing | 100PCS |
| Mounting Rail |
TS32, TS35 |
GST N4P
| Terminal Pitch | 13 |
| H×W (mm) | 39.6×49.8 |
| Rated Cross Section (mm²) | 10 mm² |
| Connection (Strannded) | 2.5mm²-10 mm² |
| Possibility (Solid) | 2.5mm²-10 mm² |
| Wire Strippinng Length | 12 mm |
| Type of Connection | 2 screw connection for ring/fork lugs |
| Rating (IEC 60947-7-1) | 800V/57A/10mm²/1.2N.m |
| Screw Size | M4 |
| Color & CAT No. |
|
| Grey | GSTN4P/G |
| Khaki | |
| Red | |
| Yellow | |
| Blue | |
| Black | |
| End Plate | GEP-SP |
| End Clamp Model No. | GECP1/GECM1/2 |
| Standard Packing | 100PCS |
| Mounting Rail |
TS32, TS35 |

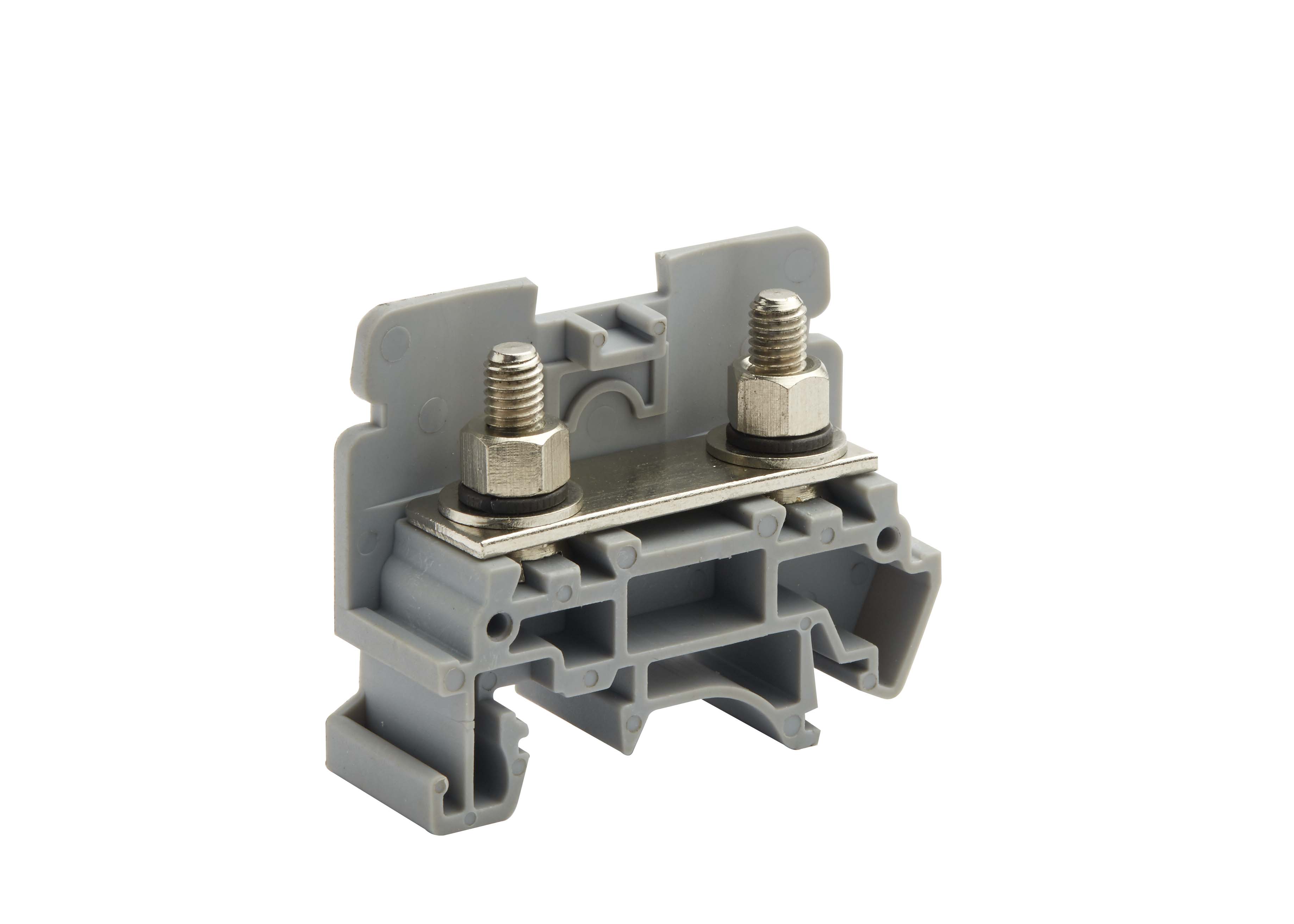

GST N5P
| Terminal Pitch | 13 |
| H×W (mm) | 39.6×49.8 |
| Rated Cross Section (mm²) | 16 mm² |
| Connection (Strannded) | 2.5mm²-16mm² |
| Possibility (Solid) | 2.5mm²-16mm² |
| Wire Strippinng Length | 12mm |
| Type of Connection | 2 screw connection for ring/fork lugs |
| Rating (IEC 60947-7-1) | 800V/76A/16mm²/2 N.m |
| Screw Size | M5 |
| Color & CAT No. |
|
| Grey |
GSTN5P/G |
| Khaki | |
| Red | |
| Yellow | |
| Blue | |
| Black | |
| End Plate | GEP-SP |
| End Clamp Model No. | GECP1/GECM1/2 |
| Standard Packing | 100PCS |
| Mounting Rail |
TS32, TS35 |

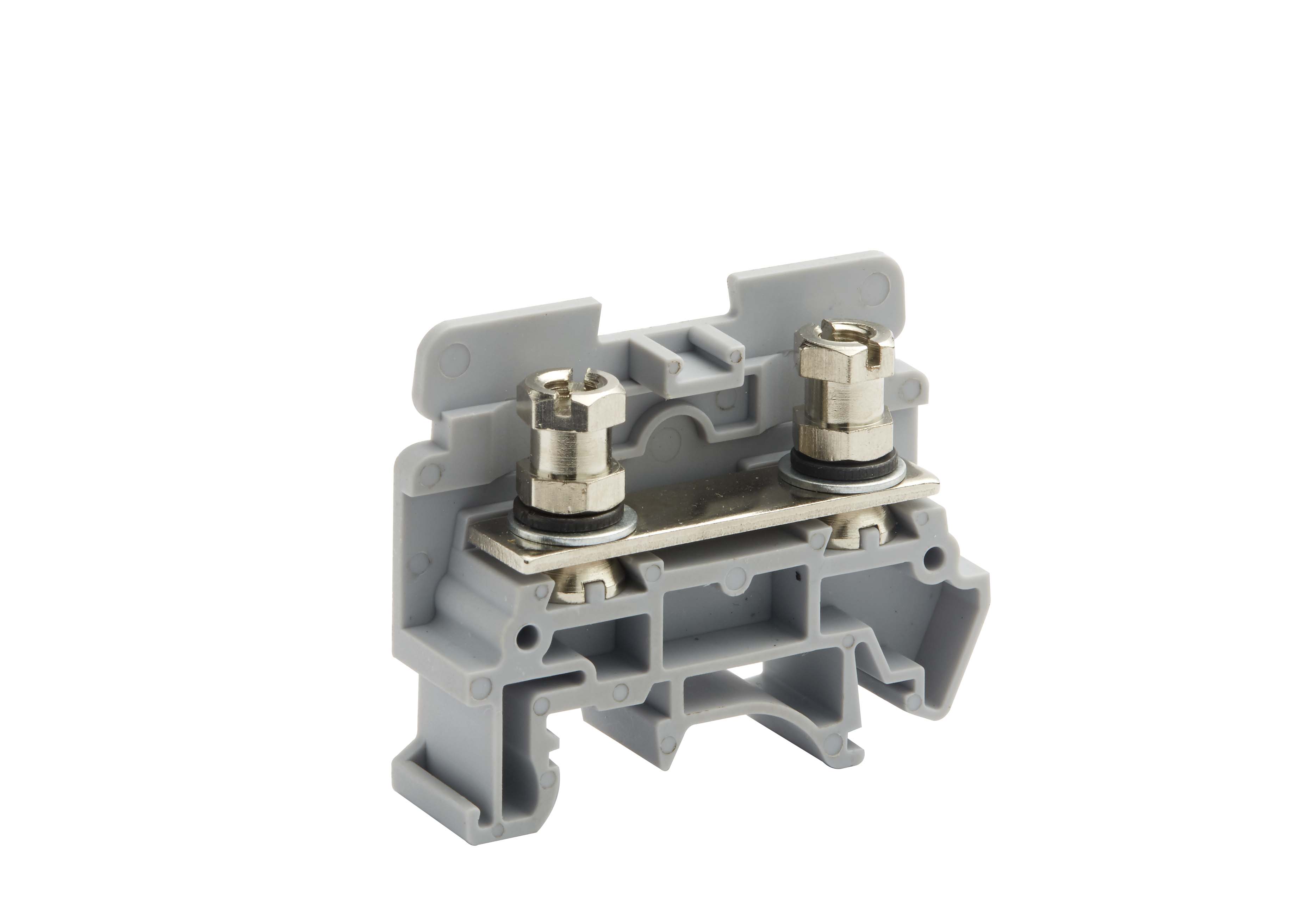

GST M5P
| Terminal Pitch | 17 |
| H×W (mm) | 39.6*49.8 |
| Rated Cross Section (mm²) | 25 mm² |
| Connection (Strannded) | 2.5mm²-25 mm² |
| Possibility (Solid) | 2.5mm²-25mm² |
| Wire Strippinng Length | 12mm |
| Type of Connection | 2 screw connection for ring/fork lugs |
| Rating (IEC 60947-7-1) | 800V/101A/25mm²/2 N.m |
| Screw Size | M5 |
| Color & CAT No. |
|
| Grey |
GSTM5P/G |
| Khaki | |
| Red | |
| Yellow | |
| Blue | |
| Black | |
| End Plate | GEP-SP |
| End Clamp Model No. | GECP1/GECM1/2 |
| Standard Packing | 50PCS |
| Mounting Rail |
TS32, TS35 |

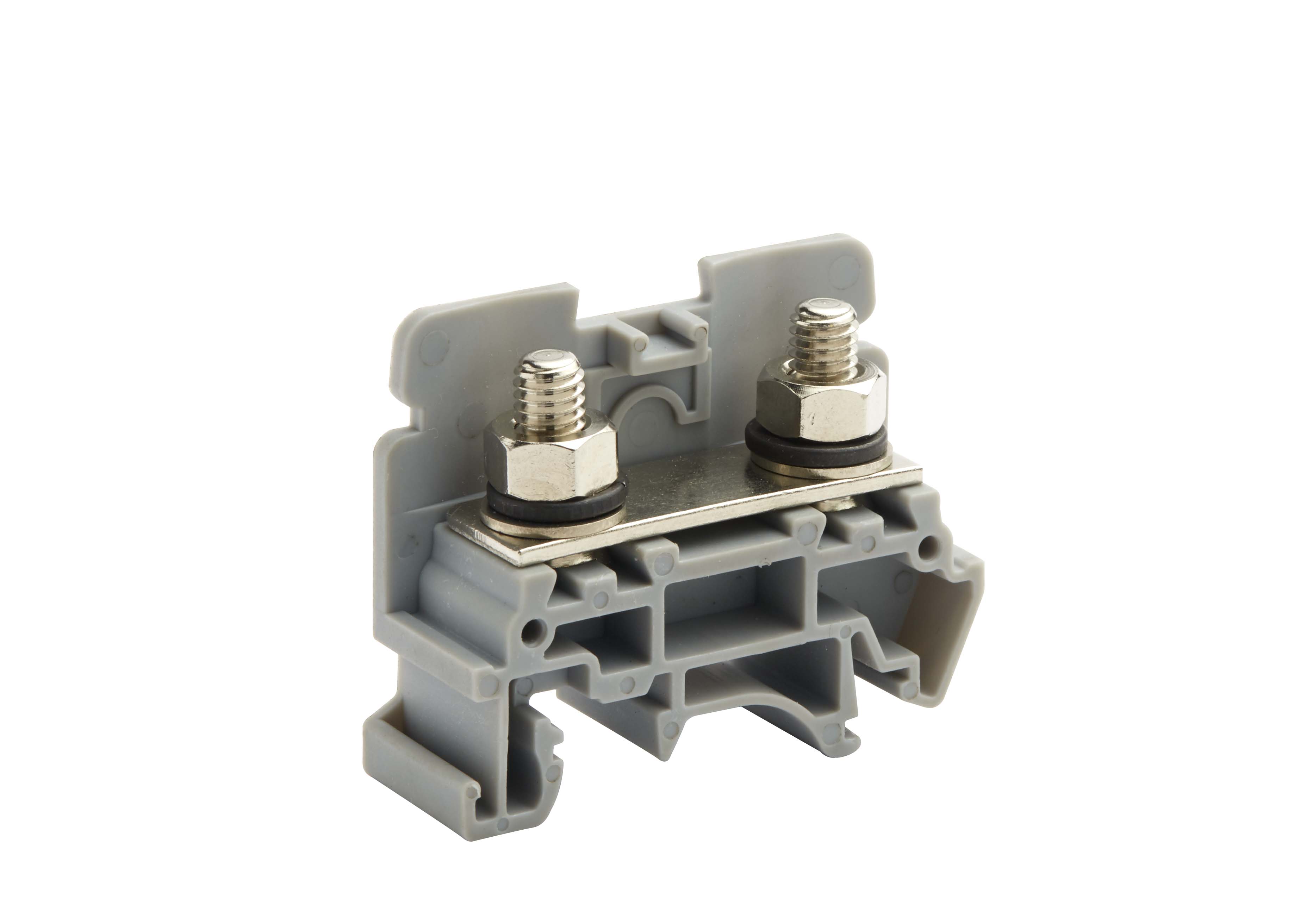

GST N6P
| Terminal Pitch | 17 |
| H×W (mm) | 39.6×49.8 |
| Rated Cross Section (mm²) | 35 mm² |
| Connection (Stranded) | 2.5mm²-35 mm² |
| Possibility (Solid) | 2.5mm²-35 mm² |
| Wire Stripping Length | 12mm |
| Type of Connection | 2 screw flat connection for ring/fork lugs |
| Rating (IEC 60947-7-1) | 1000V/125A/35mm²/3 N.m |
| Screw Size | M6 |
| Color & CAT No. | |
| Grey | |
| Red | |
| Yellow | |
| Blue | |
| Black | |
| End Plate | GEP-SP |
| End Clamp Model No. | GECP1/GECM1/2 |
| Standard Packing | 100PCS |
| Mounting Rail | TS32, TS35 |
