Double Level Terminals

  • Double Level Terminal Blocks With Electronic Components

Back

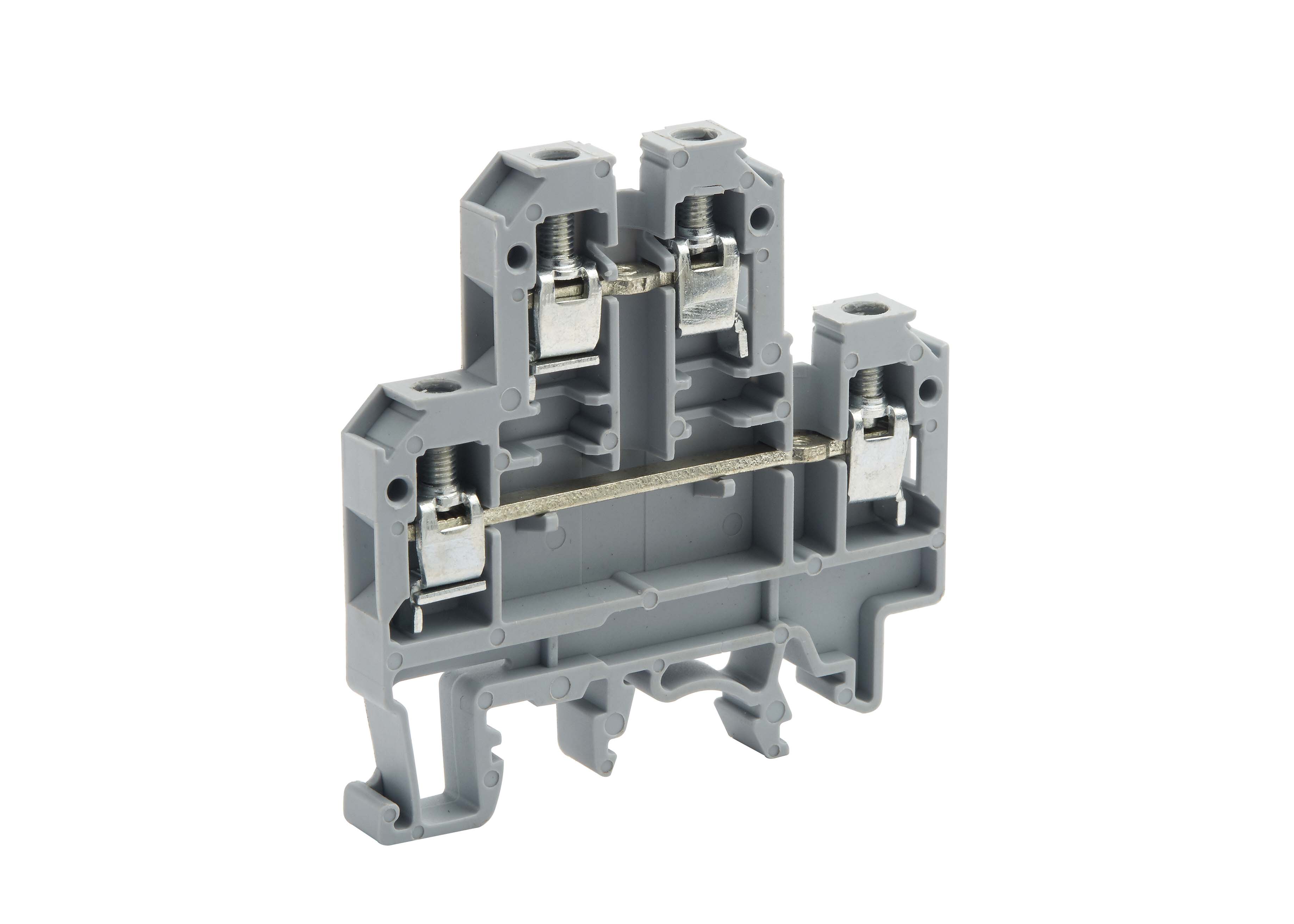

GSTDL 4P

Terminal Pitch 6
H×W (mm) 54.6×55.5
Rated Cross Section (mm²) 4 mm²
Connection (Strannded) 0.5 mm²-4 mm²
Possibility (Solid) 0.5 mm²-4 mm²
Wire Strippinng Length 9 mm
Type of Connection 4 screw clamp connection & 2 tapped hole for cross conection
Rating (IEC 60947-7-1) 400V/32A/4mm²/0.5 N.m
Screw Size M3
Color & CAT  No.
Grey GSTDL4P/G
Khaki
Red
Yellow
Blue
Black
End Plate GEP-DL4P
End Clamp Model No. GECP1/GECM1/2
Standard Packing 100PCS
Mounting Rail
 TS32, TS35

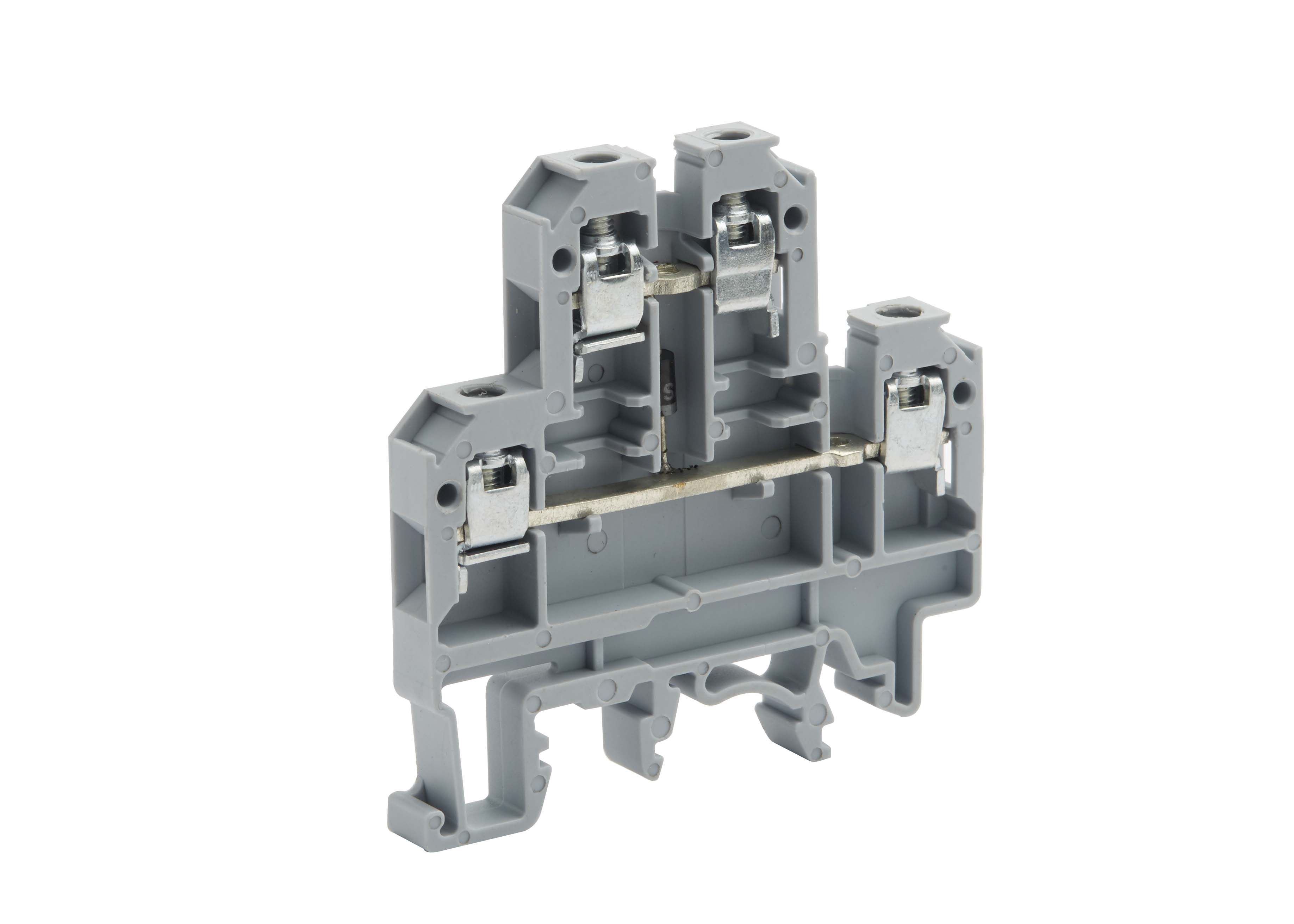

GSTDL4P/CU

Terminal Pitch 6
H×W (mm) 54.6×55.5
Rated Cross Section (mm²) 4 mm²
Connection (Stranded) 0.5 mm²-4 mm²
Possibility (Solid) 0.5 mm²-4 mm²
Wire Strippinng Length 9 mm
Type of Connection 1 connector with 4 terminals on 2 levels equipped with anti return diode
Rating (IEC 60947-7-1) 400V/32A/4mm²/0.5 N.m
Diode M3
Color & CAT No.
Grey GSTDL4P/CU/G
Khaki
Red
Yellow
Blue
Black
End Plate GEP DL4P
End Clamp Model No. GECP1/GECM1/GECM2
Standard Packing 100PCS
Mounting Rail
 TS32, TS35
Cathode of anti return diode is connected on the upper level Cathode of anti return diode is connected on the lower level

GSTDL4P/ CL

With arc suppression circuit for contactors & solenoid valves-D.C.

Terminal Pitch 6
H×W (mm) 54.6×55.5
Rated Cross Section (mm²) 4 mm²
Connection (Strannded) 0.5 mm²-4 mm²
Possibility (Solid) 0.5 mm²-4 mm²
Wire Strippinng Length 9 mm
Type of Connection 2 screw clamp & 1 tapped hole for cross connection
Rating (IEC 60947-7-1) 400V/32A/4mm²/0.5 N.m
Diode 1N 4007
Color & CAT  No.
Grey GSTDL4P/CL/G
End Plate GEP-DL4P
End Clamp Model No. GECP1/GECM1/2
Standard Packing 100PCS
Mounting Rail
 TS32, TS35
Cathode of anti return diode is connected on the upper level Cathode of anti return diode is connected on the lower level

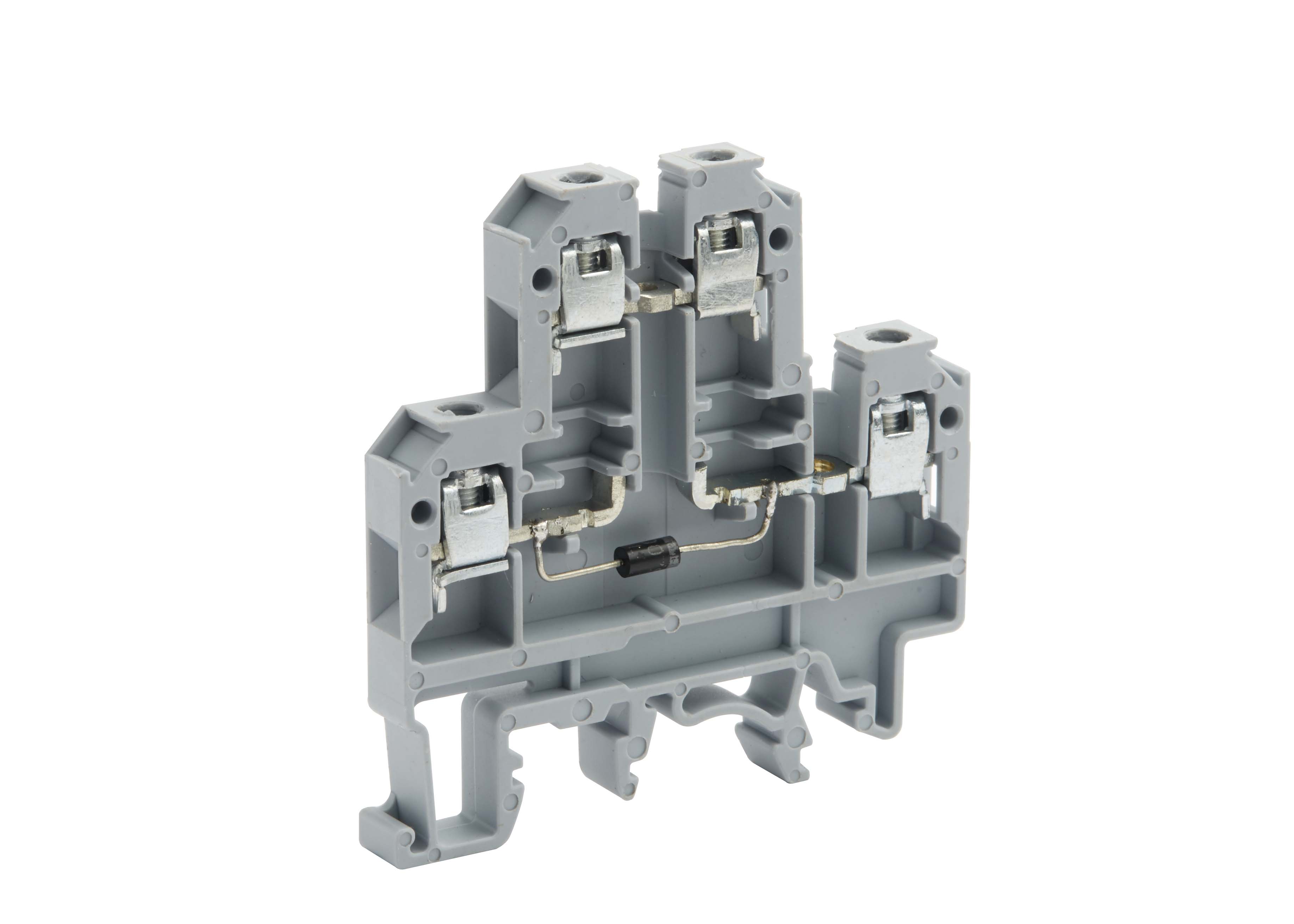

GSTDL4P/CH

Diode Circuit for reverse polarity protection

Terminal Pitch 6
H×W (mm) 54.6×55.5
Rated Cross Section (mm²) 4 mm²
Connection (Stranded) 0.5 mm²-4 mm²
Possibility (Solid) 0.5 mm²-4 mm²
Wire Strippinng Length 9 mm
Type of Connection 1 connector with 4 terminals on 2 levels equipped with anti return diode
Rating (IEC 60947-7-1) 400V/32A/4mm²/0.5 N.m
Diode 1N 4007
Color & CAT No.
Grey GSTDL4P/CH/G
End Plate GEP-DL4P
End Clamp Model No. GECP1/GECM1/2
Standard Packing 100PCS
Mounting Rail
 TS32,TS35
Cathode of anti return diode is connected on either side of the lower level one +ve output on the lower level

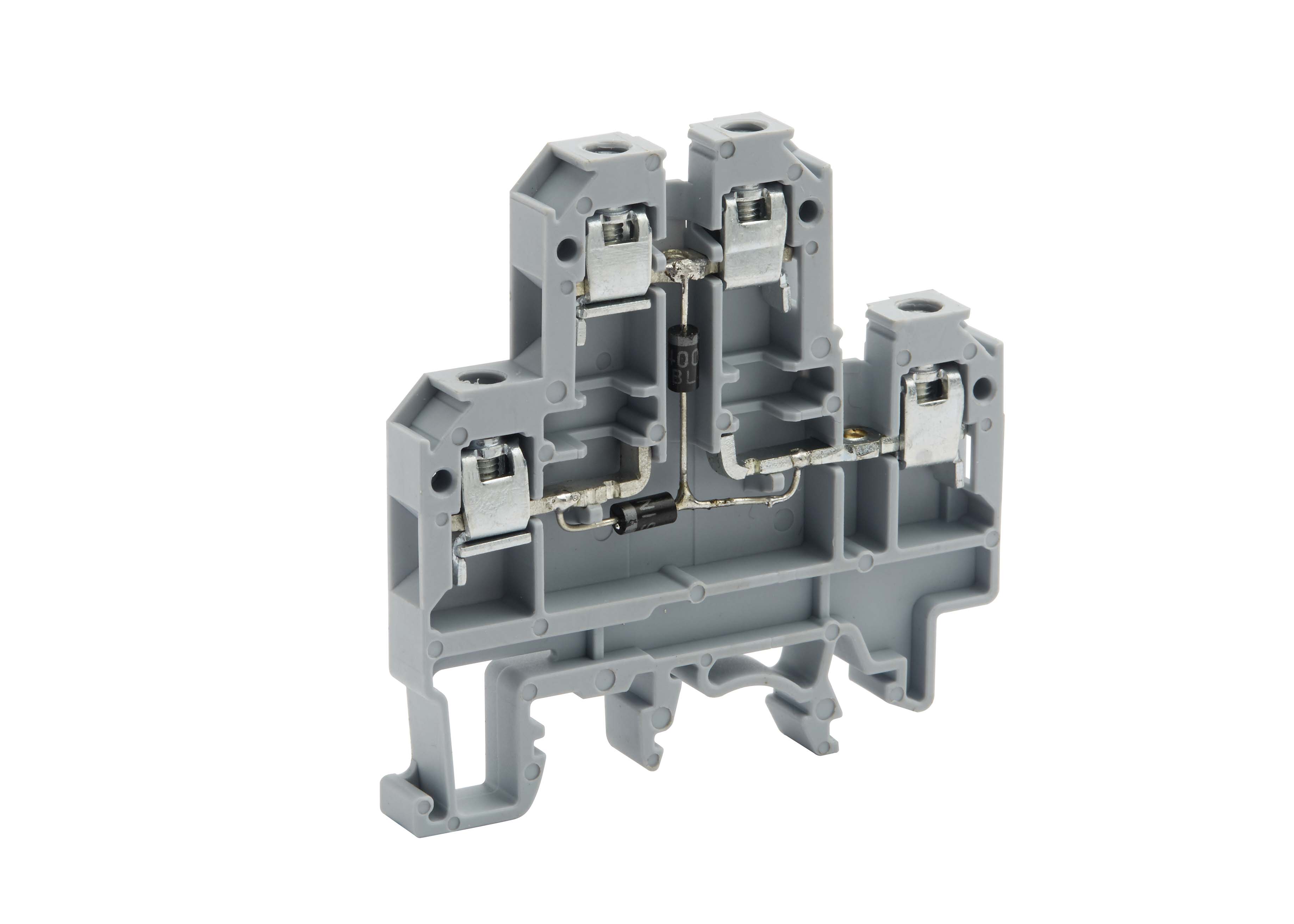

GSTDL4P/ CCL

Diode Circuit for Lamp Testing

Terminal Pitch 6
H×W (mm) 54.6×55.5
Rated Cross Section (mm²) 4 mm²
Connection (Strannded) 0.5 mm²-4 mm²
Possibility (Solid) 0.5 mm²-4 mm²
Wire Strippinng Length 9 mm
Type of Connection 1 connector with 4 terminals on 2 levels equipped with anti return diode
Rating (IEC 60947-7-1) 400V/32A/4mm²/0.5 N.m
Diode 1N 4007
Color & CAT  No.
Grey GSTDL4P/CCL/G
End Plate GEP-DL4P
End Clamp Model No. GECP1/GECM1/2
Standard Packing 100PCS
Mounting Rail
 TS32,TS35
Cathode of anti return diode is connected on either side of the lower level one +ve output on the lower level

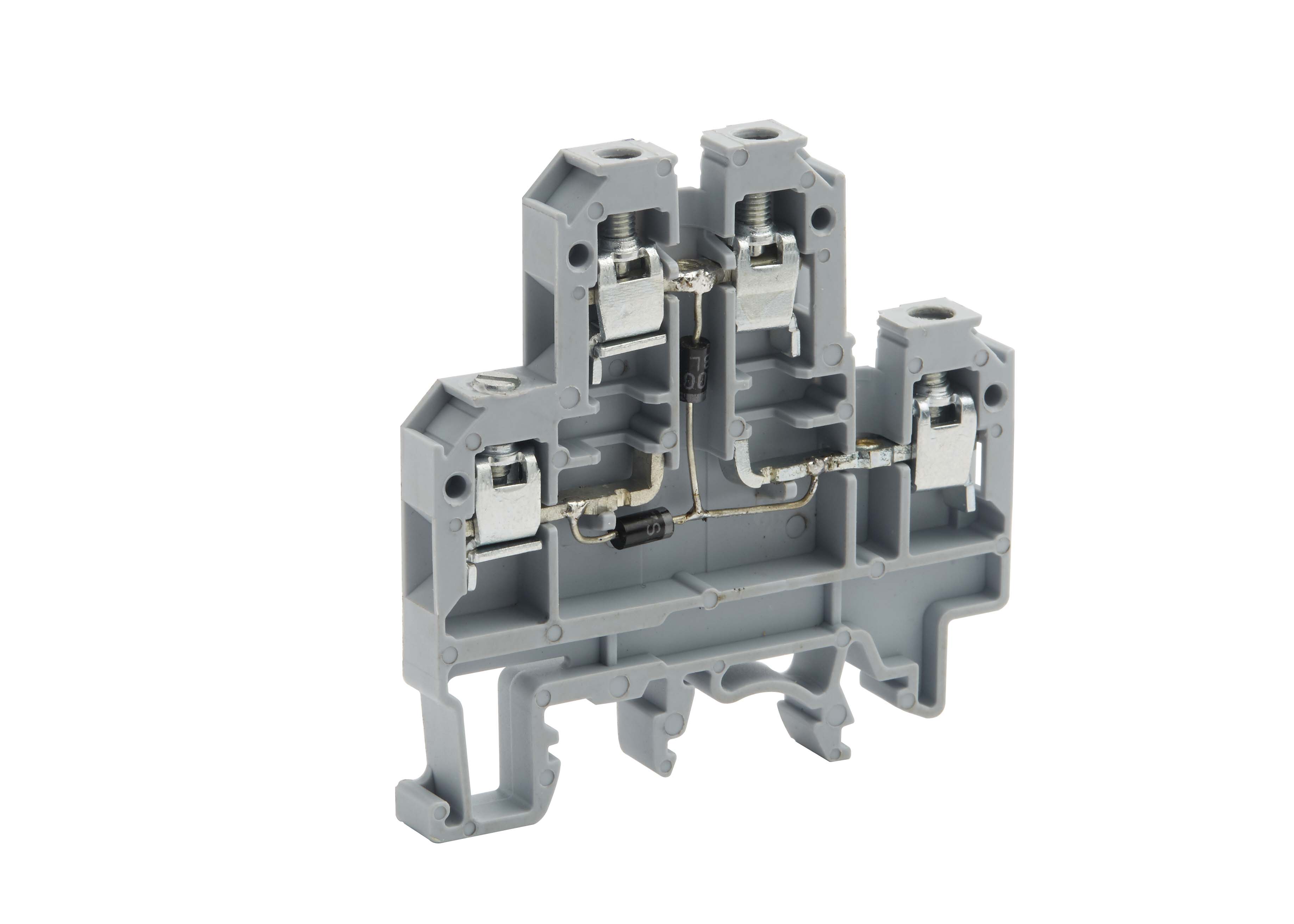

GSTDL4P/CCR

Diode Circuit for lamp testing

Terminal Pitch 6
H×W (mm) 54.6×55.5
Rated Cross Section (mm²) 4 mm²
Connection (Stranded) 0.5 mm²-4 mm²
Possibility (Solid) 0.5 mm²-4 mm²
Wire Strippinng Length 9 mm
Type of Connection 1 connector with 4 terminals on 2 levels equipped with anti return diode
Rating (IEC 60947-7-1) 400V/32A/4mm²/0.5 N.m
Diode 1N 4007
Color & CAT No.
Grey GSTDL4P/CCR/G
End Plate GEP-DL4P
End Clamp Model No. GECP1/GECM1/2
Standard Packing 100PCS
Mounting Rail
 TS32,TS35
one -ve output, on the lower level Two +ve outputs, on the lower level

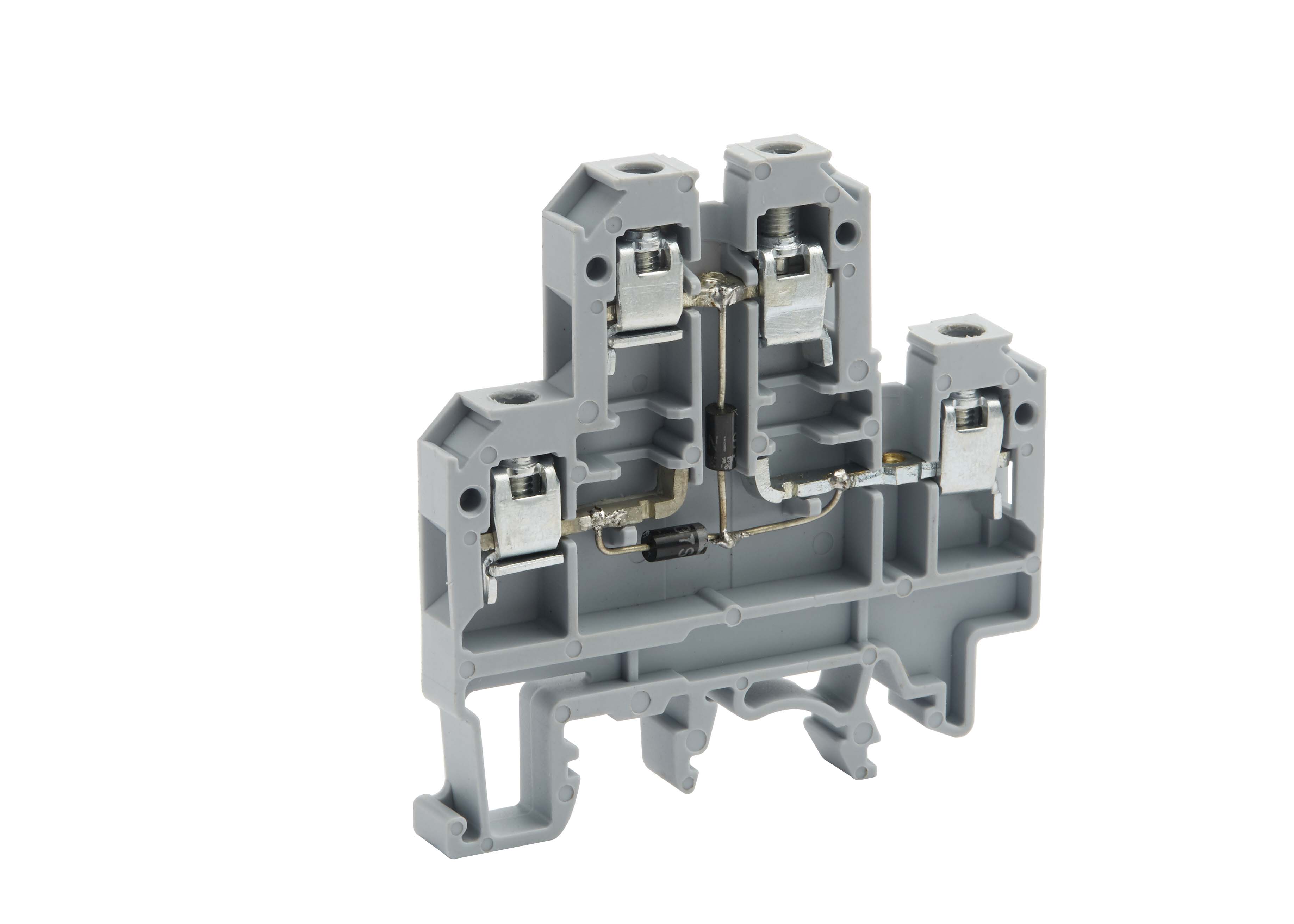

GSTDL4P/ CAL

Diode Circuit for lamp testing

Terminal Pitch 6
H×W (mm) 54.6×55.5
Rated Cross Section (mm²) 4 mm²
Connection (Strannded) 0.5 mm²-4 mm²
Possibility (Solid) 0.5 mm²-4 mm²
Wire Strippinng Length 9 mm
Type of Connection 1 connector with 4 terminals on 2 levels equipped with anti return diode
Rating (IEC 60947-7-1) 400V/32A/4mm²/0.5 N.m
Diode 1N 4007
Color & CAT  No.
Grey GSTDL4P/CAL/G
End Plate GEP-DL4P
End Clamp Model No. GECP1/GECM1/2
Standard Packing 100PCS
Mounting Rail
 TS32,TS35
one -ve output, on the lower level Two +ve outputs, on the lower level

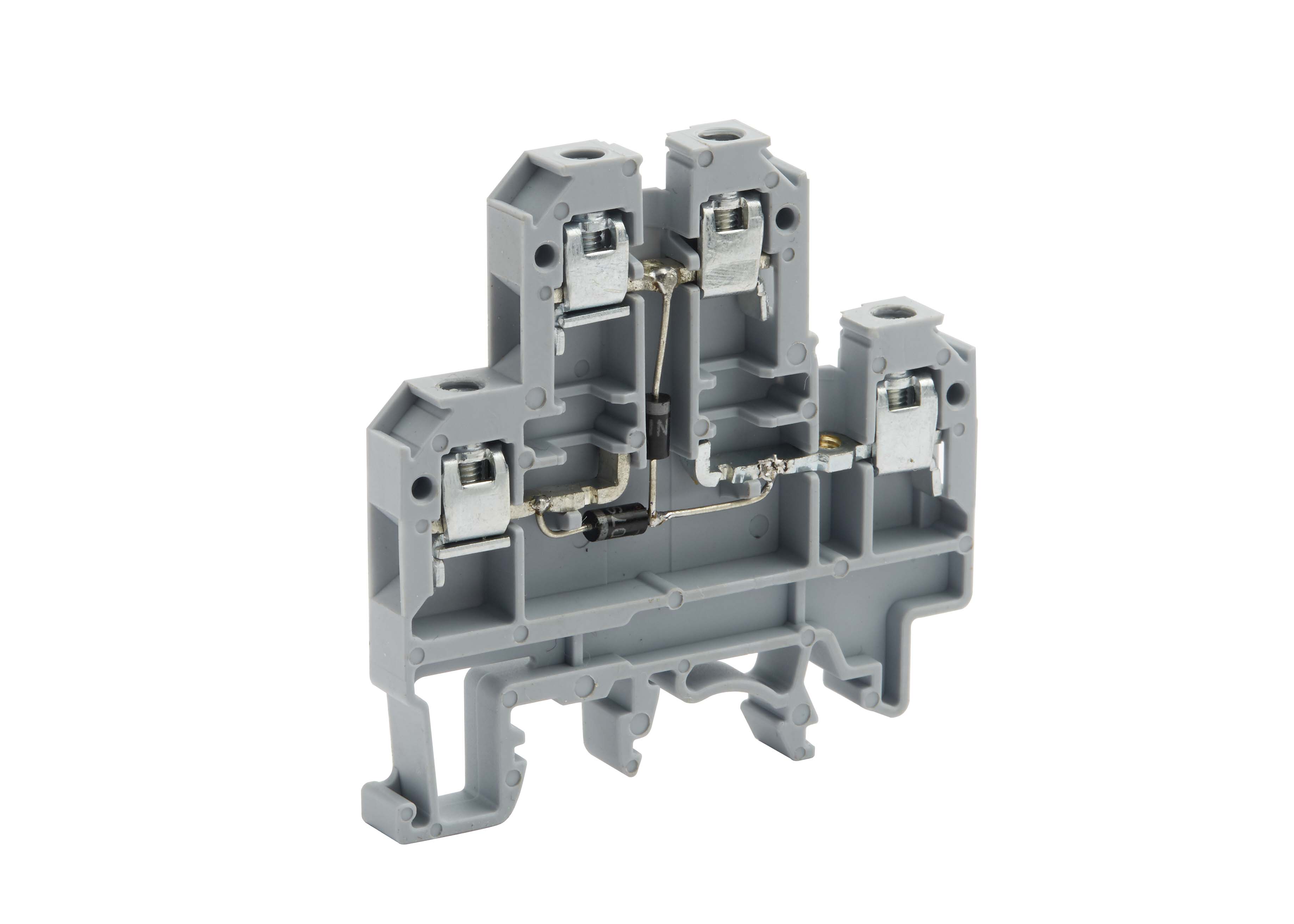

GSTDL4P/CAR

Diode circuit for lamp testing

Terminal Pitch 6
H×W (mm) 54.6×55.5
Rated Cross Section (mm²) 4 mm²
Connection (Stranded) 0.5 mm²-4 mm²
Possibility (Solid) 0.5 mm²-4 mm²
Wire Strippinng Length 9 mm
Type of Connection 1 connector with 4 terminals on 2 levels equipped with two anti return diodes
Rating (IEC 60947-7-1) 400V/32A/4mm²/0.5 N.m
Diode 1N 4007
Color & CAT No.
Grey GSTDL4P/CAR/G
End Plate GEP-DL4P
End Clamp Model No. GECP1/GECM1/2
Standard Packing 100PCS
Mounting Rail
 TS32,TS35
Two -ve outputs on the lower level

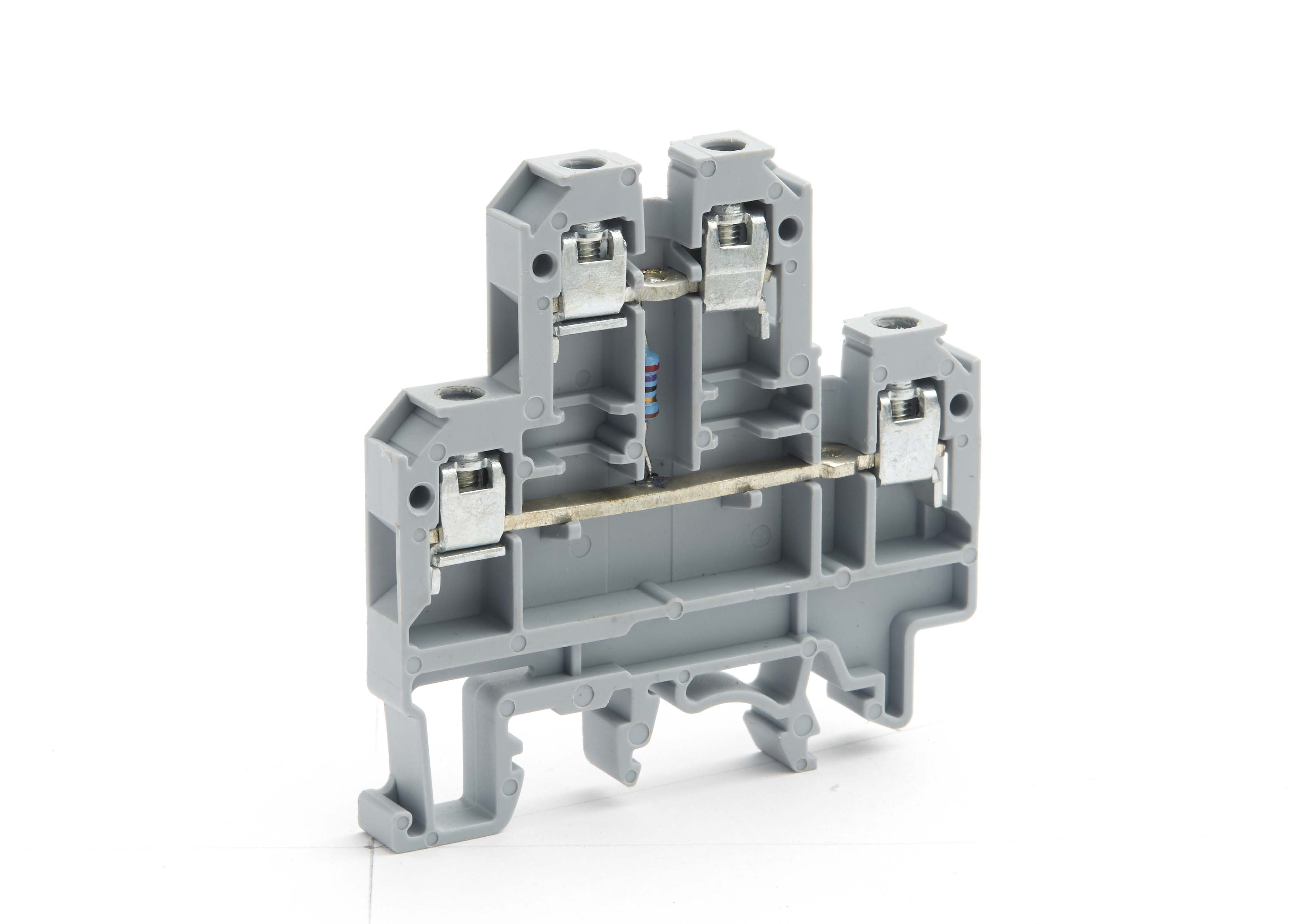

GSTDL4P/ R

Terminal Pitch 6
H×W (mm) 54.6×55.5
Rated Cross Section (mm²) 4 mm²
Connection (Strannded) 0.5 mm²-4 mm²
Possibility (Solid) 0.5 mm²-4 mm²
Wire Strippinng Length 9 mm
Type of Connection 1 connector with 4 terminals on 2 levels equipped with two anti return diodes
Rating (IEC 60947-7-1) 400V/32A/4mm²/0.5 N.m
Resistor
Color & CAT  No.
Grey GSTDL4P/R/G
End Plate GEP-DL4P
End Clamp Model No. GECP1/GECM1/2
Standard Packing 100PCS
Mounting Rail
 TS32,TS35
Two -ve outputs on the lower level

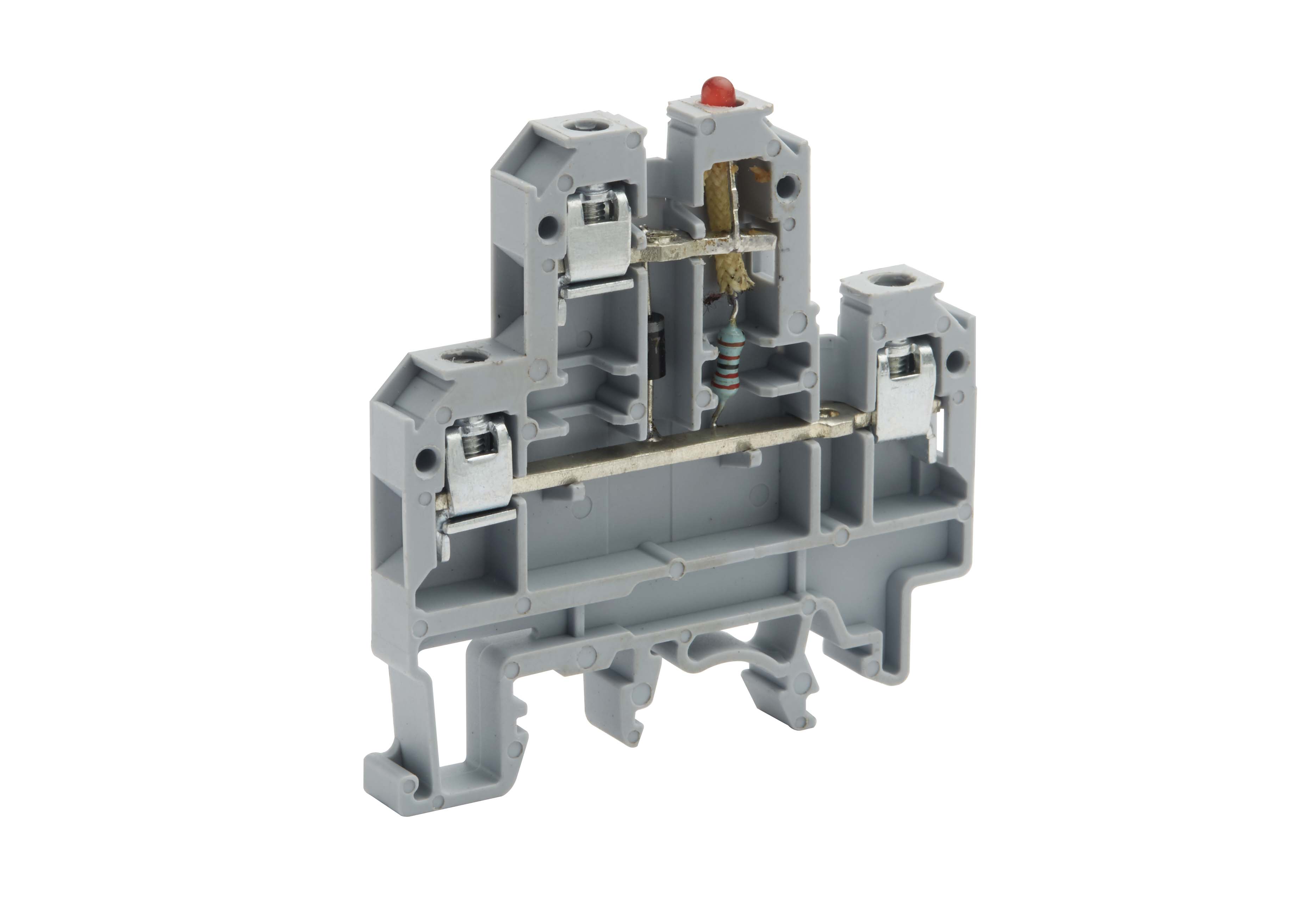

GSTDL4P/ LD

Terminal Pitch 6
H×W (mm) 54.6×55.5
Rated Cross Section (mm²) 4 mm²
Connection (Stranded) 10mm²-35mm²
Possibility (Solid) 10mm²-50mm²
Wire Strippinng Length 17mm
Type of Connection 2 Screw Clamp & 1 Tapped hole for cross connection
Rating (IEC 60947-7-1) 800V/125 A/35mm²/2.5N.m
Diode M6
Color & CAT  No.
Grey GSTDL4P/LD/G
End Plate GEP-DL4P
End Clamp Model No. GECP1/GECM1/2
Standard Packing 100PCS
Mounting Rail
 TS32, TS35
Cathode of anti return diode is connected on the upper level
