Polyamide Terminal Block
- Fuse Type Terminals

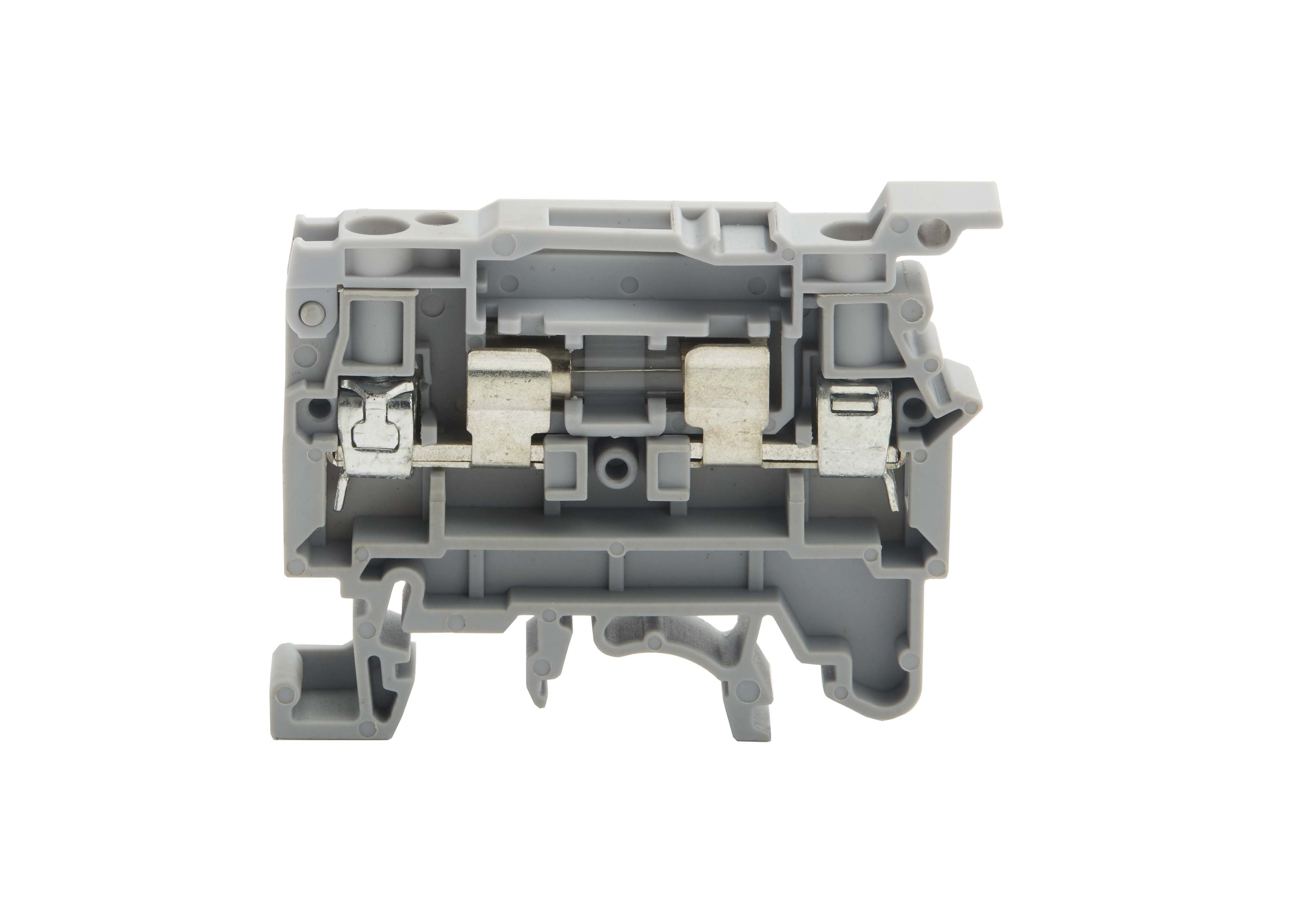

GSTDF 4P
| Terminal Pitch | 9 |
| H×W (mm) | 42.5×58 |
| Rated Cross Section (mm²) | 4 mm² |
| Connection (Strannded) | 0.5 mm²-2.5 mm² |
| Possibility (Solid) | 0.5mm²-4mm² |
| Wire Strippinng Length | 9 mm |
| Type of Connection | 2 screw clamp (with fuse holder) |
| Rating (IEC 60947-7-1) | 500V/6.3A/4 mm²/0.4N.m |
| Screw Size | M3 |
| Color & CAT No. |
|
| Grey |
GSTDF4P/G |
| Khaki | |
| Red | |
| Yellow | |
| Blue | |
| Black | |
| End Plate | GEP-DF4P |
| End Clamp Model No. | GECP1/GECM1/2 |
| Standard Packing | 100PCS |
| Mounting Rail |
TS15, TS32, TS35 |
GSTDFL4P AC / GSTDL4P DC (with LED indicator)
| Terminal Pitch | 9 |
| H×W (mm) | 42.5×58 |
| Rated Cross Section (mm²) | 4 mm² |
| Connection (Stranded) | 0.5 mm²-2.5 mm² |
| Possibility (Solid) | 0.5mm²-4mm² |
| Wire Stripping Length |
9 mm |
| Type of Connection | 2 screw clamp (with fuse holder) |
| Rating (IEC 60947-7-1) | (For AC) 500V/6.3A/4mm²/0.4 N.m (For DC) 24V/6.3A/4mm²/0.4N.m |
| Screw Size | M3 |
| Color & CAT No. |
|
| Grey |
GSTDFL4P AC / GSTDL4P DC |
| Khaki | |
| Red | |
| Yellow | |
| Blue | |
| Black | |
| End Plate | GEP-DFL4P |
| End Clamp Model No. | GECP1/GECM1/2 |
| Standard Packing | 100PCS |
| Mounting Rail |
TS15, TS32, TS35 |
