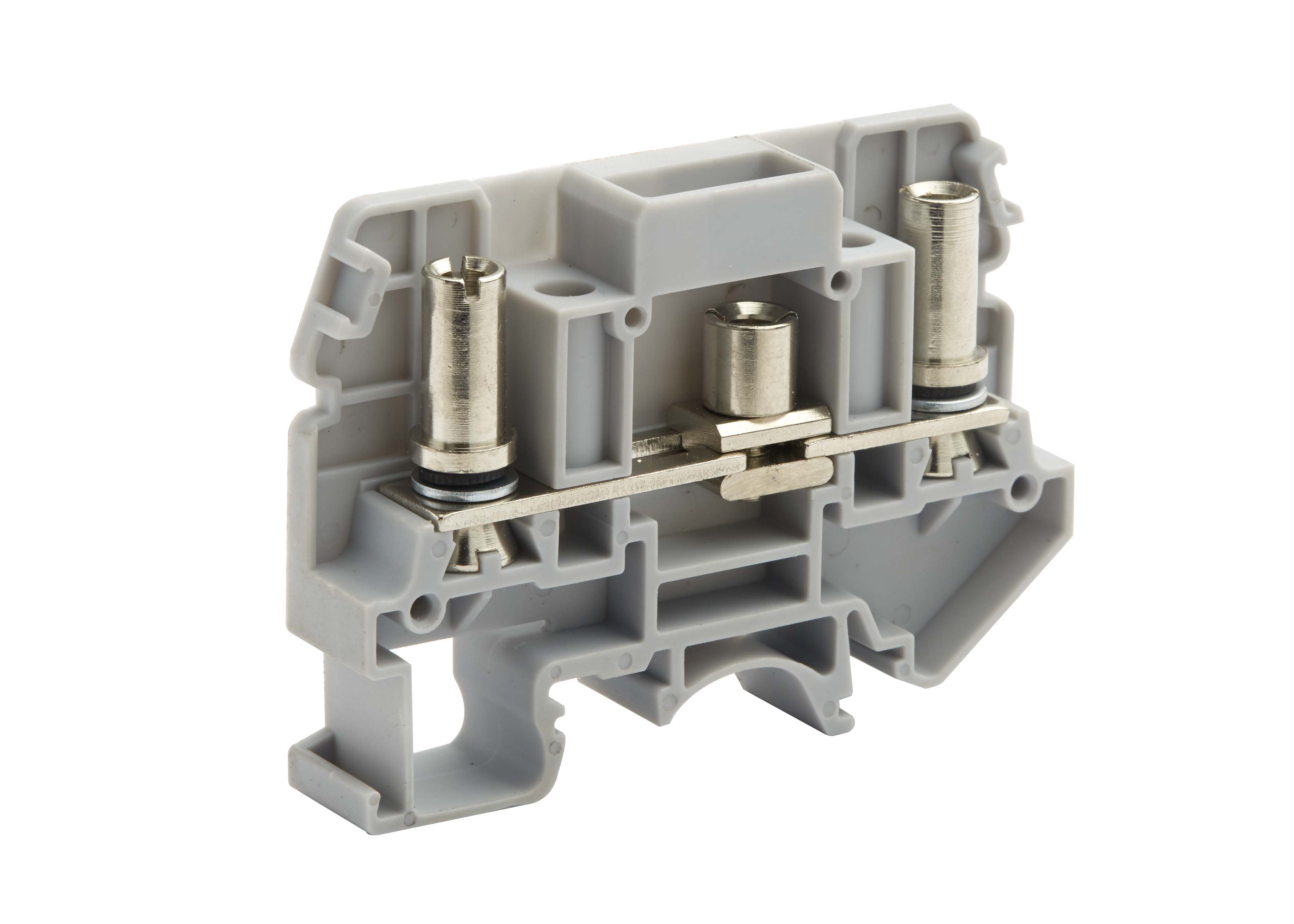

Polyamide Terminal Block
- Disconnecting & Testing Type Terminals
GSTDT6P
| Terminal Pitch | 13 |
| H×W (mm) | 49×70 |
| Rated Cross Section (mm²) | 6 mm² |
| Connection (Strannded) | 2.5 mm²-6 mm² |
| Possibility (Solid) | 2.5 mm²-6 mm² |
| Wire Strippinng Length | 12 mm |
| Type of Connection | 2 screw flat connection for ring/fork lugs |
| Rating (IEC 60947-7-1) | 800V/41A/6 mm²/1.2N.m |
| Screw Size | M4 |
| Color & CAT No. | |
| Grey | GSTDT6P/G |
| Khaki | |
| Red | |
| Yellow | |
| Blue | |
| Black | |
| End Plate | GEP DT6P |
| End Clamp Model No. | GECP1/GECM1/2 |
| Standard Packing | 50PCS |
| Mounting Rail |
TS32, TS35 |
