Melamine Terminal Block
- Disconnecting & Testing Type Terminals
GSTDT6
| Terminal Pitch | 13 |
| H×W (mm) | 55.0×68.0 |
| Rated Cross Section (mm²) | 2×6 mm² |
| Connection (Strannded) | 2.5 mm²-6 mm² |
| Possibility (Solid) | 2.5 mm²-6 mm² |
| Wire Strippinng Length | |
| Type of Connection | 2 screw flat connection for ring/fork lugs |
| Rating (IEC 60947-7-1) | 800V/41A/6 mm²/1.2 Nm |
| Screw Size | M4 |
| Color & CAT No. |
|
| Grey |
NA |
| Khaki | GSTDT6 |
| Red | NA |
| Yellow | NA |
| Blue | NA |
| Black | NA |
| End Plate | GEPDT |
| End Clamp Model No. | GECM1/GECP1 |
| Standard Packing | 50 PCS |
| Mounting Rail |
TS 32 |

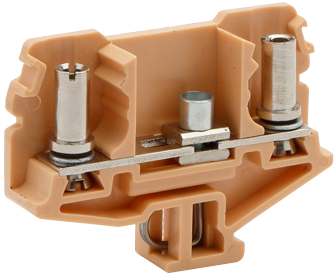

GSTDT6-1
| Terminal Pitch | 13 |
| H×W (mm) | 55.0×68.0 |
| Rated Cross Section (mm²) | 2×6 mm² |
| Connection (Strannded) | 2.5mm²-6mm² |
| Possibility (Solid) | 2.5mm²-6mm² |
| Wire Strippinng Length |
|
| Type of Connection | 2 screw flat connection for ring/fork lugs |
| Rating (IEC 60947-7-1) | 800V/41A/6mm²/1.2N.m |
| Screw Size | M4 |
| Color & CAT No. |
|
| Grey |
NA |
| Khaki | GSTDT6-1 |
| Red | NA |
| Yellow | NA |
| Blue | NA |
| Black | NA |
| End Plate | GEPDT |
| End Clamp Model No. | GECM1/GECP1 |
| Standard Packing | 50 PCS |
| Mounting Rail |
TS 32 |
